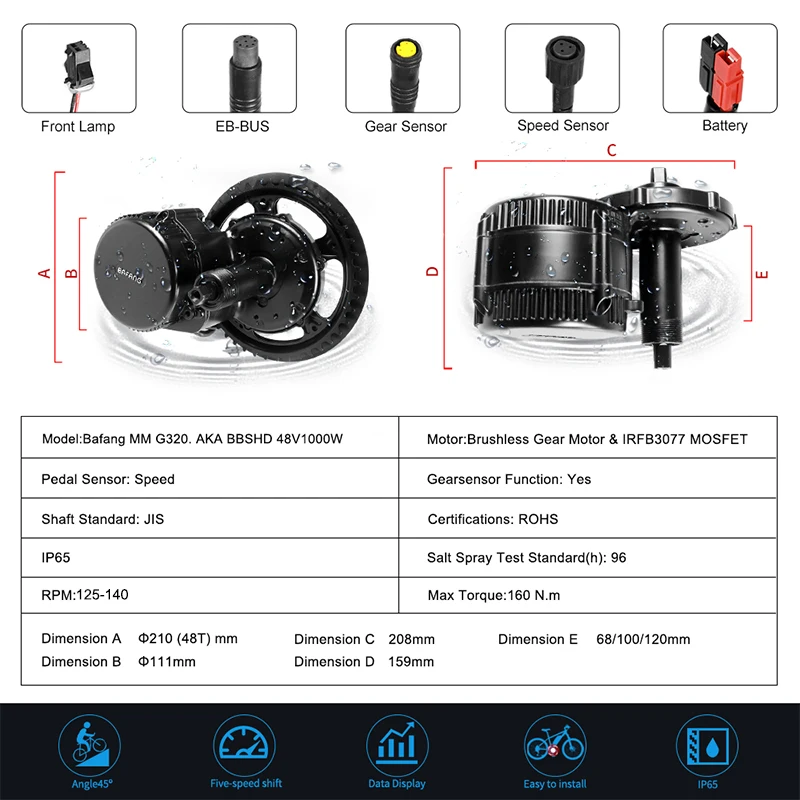

Bafang Motor BBSHD 48V 1000W BBS03 Mid Drive Motor Electric Bicycle ebike Conversion Kit W/ 12Ah Battery Built in Samsung Cells

Brand Name BAFANG

Voltage 48V

Wattage > 400w

Design Brushless

Motor Type Side Hung Motor

Bafang Motor type 48V 1000W mid drive conversion kit

Bafang controller designed inside the motor

Bafang motor Color Black

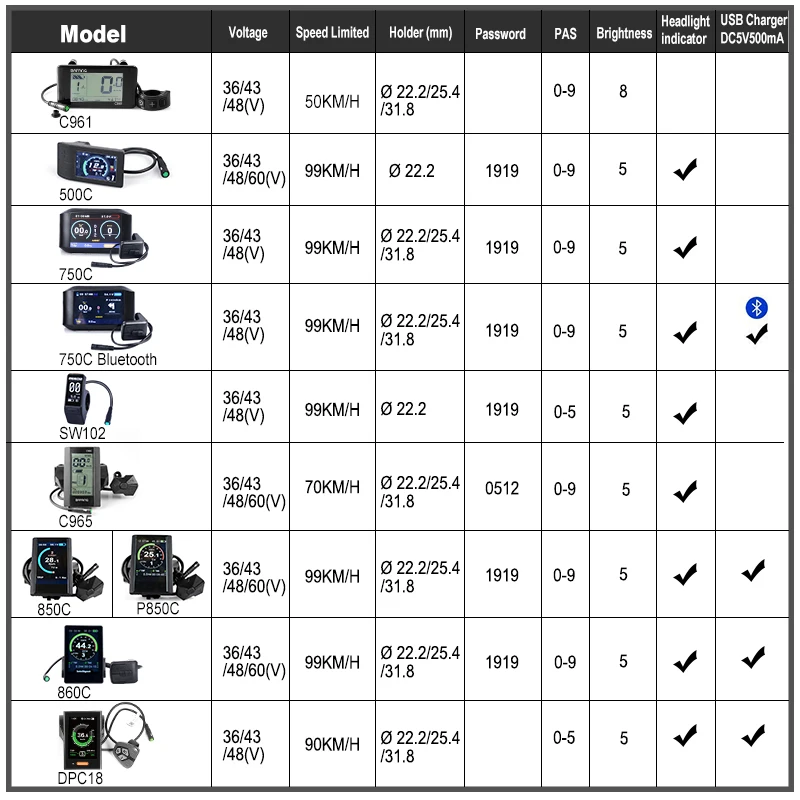

Bafang LCD display C961/C965/500C/850C/P850C/DPC18

Chainwheel 42T/44T/46T BBSHD Style

Bottom Bracket 68mm/100mm120mm

Gear Sensor For Hydraulic YES

6V Front Lamp YES

MAX Torque 160 N.m

Weight 5.6KG

Hot Recommend: 48V 1000W Bafang BBSHD Mid Drive Motor Feature: 1, It's the newest version with gear shift and light connector. 2. The mosfet is If IRFB3077 in the controller. 3, 42T/44T/46T chain wheels for you to choose Specification: Power:1000W Voltage:48V Controller Current: 30A Bracket bottom length:68mm Display Working Temperature:-20-80C Waterproof Grade:IP65 You can choose BB size 68mm or 100mm or 120mm How do I know if this mid drive motor fits for my bike? This mid drive motor fits for the bike with 68mm or 73mm wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. D68mm fit 68mm or 73mm of bottom bracket D100mm fit 100mm of bottom bracket D120mm fit 120mm of bottom bracket Packaging List: 1 * 48V 1000W Mid Drive Motor built in controller 1 Pair * Brake Lever ( can be changed to hydraulic brake sensor freely if you need) 1 Pair * Crank 1 Pcs * Chainwheel (42T Default, 44T/46 opition) 1 Pcs* Thumb Throttle 1 Set * Speed Sensor 1 Pcs * Display(750C Bluetooth,DPC18,860C,850C(new),850C,750C,500C,C965,C961opition) 1 Pcs * 4 in 1 Cable 1 Set * Accessories 1 Pcs * 48V 12Ah Battery 1 Pcs * Charger (US/EU/UK/AU Charger) Gifts: 1 * Install tool+ 1 * batery connector cable + 4pcs 36V 250W Stickers ​
